Tube Clamp Fittings | 131 | Wall Flange
Get A Quote - 1300 934 028SKU: SM.131.WF

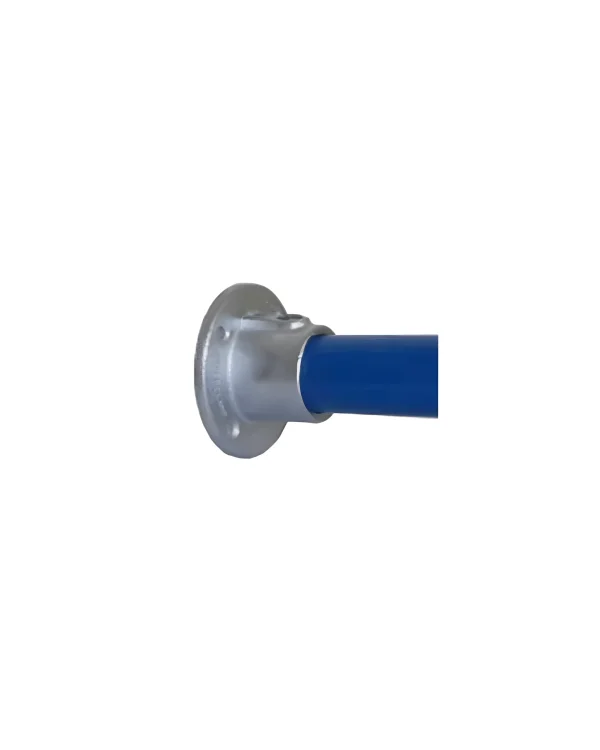

Steelmark’s 131 Wall Flange is mostly used where rails meet walls.
This is not recommended as a baseplate support handrailing, balustrade or other structures.
*Please confirm size required upon order
$10.53 – $29.83
Additional information
| Product Code: | SM.131.WF |
|---|---|
| Finish: | Galvanised |

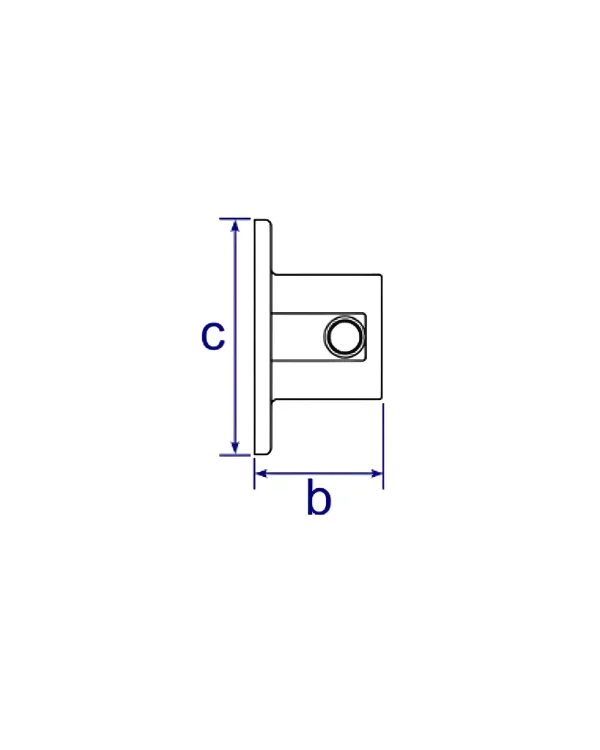

| Size A27: | 26.9mmOD x 42mm (b) x 83mm (c) x 59mm (d) x 7mm Hole Dia |
| Size B34: | 33.7mm OD x 48mm (b) x 89mm (c) x 65mm (d) x 7mm Hole Dia |
| Size C42: | 42.4mm OD x 51mm (b) x 102mm (c) x 76mm (d) x 7mm Hole Dia |
| Size D48: | 48.3mm OD x 59mm (b) x 114mm (c) x 88.5mm (d) x 7mm Hole Dia |
| Size E60: | 60.3mmOD x 64mm (b) x 128mm (c) x 97mm (d) x 7mm Hole Dia |
| Product Data Sheet: | Available upon request |
| Fittings: | Size A27, Size B34, Size C42, Size D48, Size E60 |
