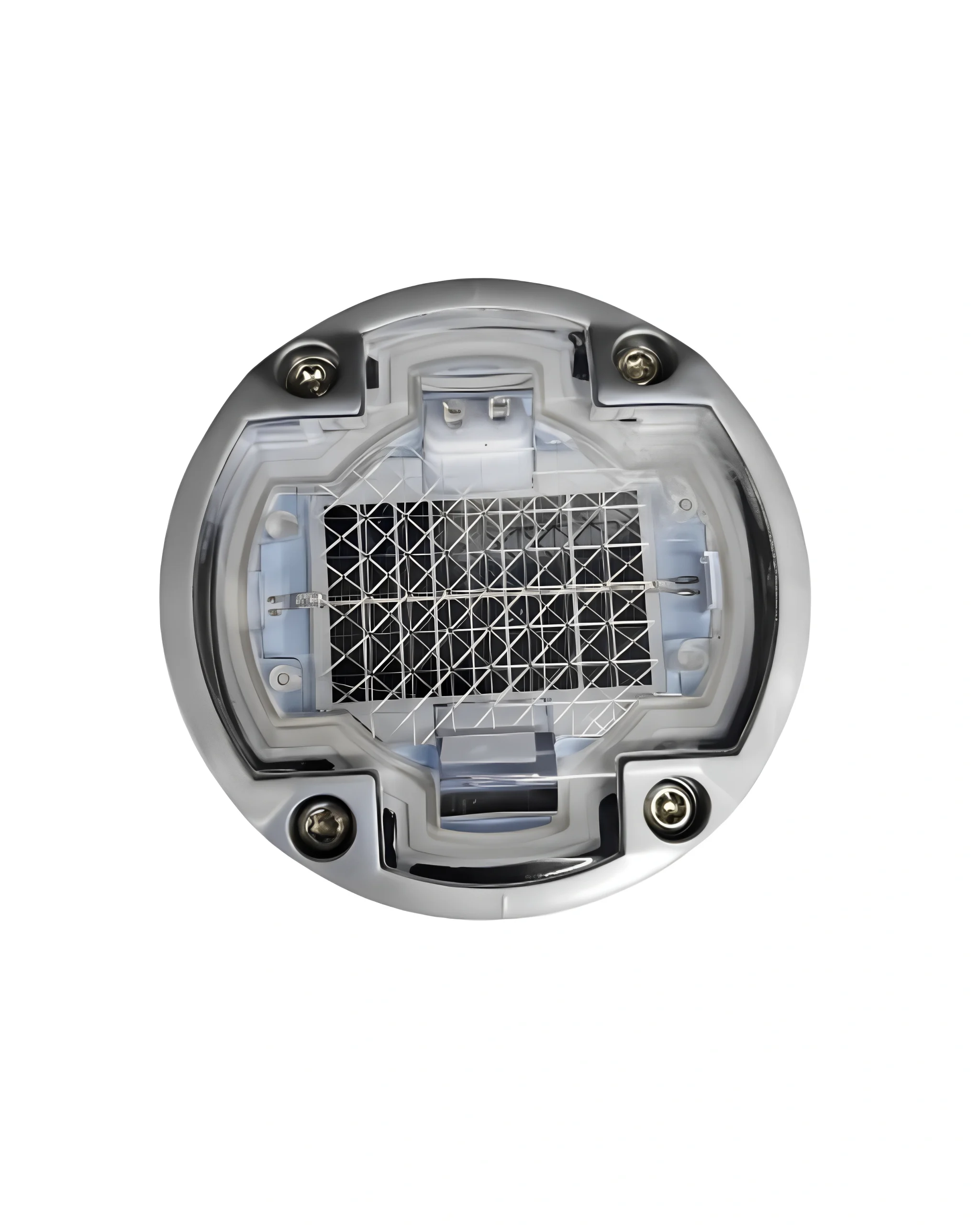

SM-SS-SG5 | Solar Road Stud (Catseye)
Get A Quote - 1300 934 028SKU: SM-SS-SG5
Boost visibility and improve road safety with the SM-SS-SG5 Solar Road Stud. Built from rugged PC and aluminum materials, this solar-powered road stud is designed to endure tough environmental conditions while providing reliable, energy-efficient illumination. Available in multiple colors—Yellow, Red, Blue, Green, and White—this solar stud is ideal for enhancing safety on highways, pedestrian paths, and other high-traffic areas.
The SM-SS-SG5 Solar Road Stud is the perfect solution for improving road safety and visibility while being environmentally friendly. Its durable construction, high-performance LEDs, and efficient energy use make it a must-have for any roadway, pathway, or parking lot in need of enhanced lighting and guidance.
Solar Road Stud
Colour Variation: Yellow | Red | Blue | Green |White
( middle road , side of road , highway, Pedestrian crossing, airport , parking lot etc)
Due to its embedded design, it will not affect passing vehicles or pedestrians, nor will it affect snow removal)
Product Code: SM-SS-SG5
Additional information
Product Code: | SM-SS-SG5 |
---|---|
Product Data Sheet: | Available upon request |
Material: | PC+aluminum |
Colour: | Yellow, Red, Blue, Green, White |
Size: | 123*45mm |
Solar panel: | 5V/100MAh for Lithium battery |
Battery: | 3.2V/1000mAh Lithium battery |
Working Model: | Flashing (200times/min) or Steady |
LEDs | 4pcs super brightness Φ5mm LEDs+2pcs super brightness Φ3mm LEDs |
Visual Range: | more than 1000meters |
Controlling light intensity: | 400-500Lux |
Working Temperature: | -20℃~+80℃ |
Waterproof: | IP68 |
Working Time: | More than 200hours for flashing model, 100 hours for steady type |
Lifetime: | 3-5 years for Ni-mAh battery, 5~8 years for Lithium battery |
Compress Resistance: | >80T |
